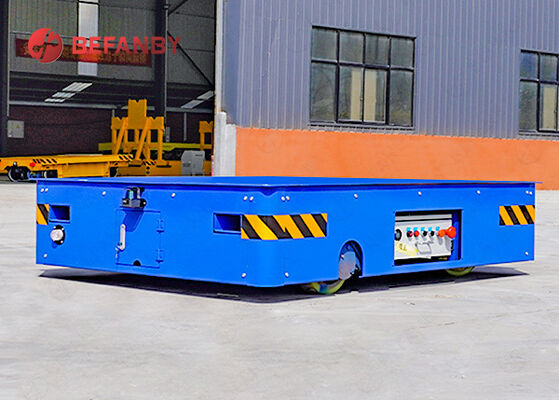

Sale Service Provided Trackless Transfer Cart For Billet Industry
商品の詳細
| 材料 | Q235 | 保証 | 18ヶ月 |
|---|---|---|---|
| 耐荷重 | 1〜70T | 応用 | 産業分野,鉄鋼の小樽輸送 |
| ポート | 清dao/Tianjin/Shanghai | 電源 | ケーブルロールの電源 |
| 特徴 | 低電圧の柵 |
製品の説明
Sale Service Provided Trackless Transfer Cart For Billet Industry
1. Product Introduce
The trackless transfer cart is an intelligent transport device capable of operating without the need for installed tracks; it is widely utilized across a diverse range of industrial settings. These include mechanical manufacturing, steel metallurgy, mold production, the automotive industry, and warehousing logistics, among others. Distinguished by its flexible operational capabilities and robust load-bearing capacity, the trackless transfer cart has emerged as a pivotal tool for modern factories seeking to achieve highly efficient logistics and transportation.
2. Advantage
Flexible Maneuverability: Adaptable to Diverse Work Environments
Unlike traditional rail-based transport systems, trackless transfer carts are unconstrained by fixed tracks. They can move flexibly across hard-surface flooring, executing forward and backward movements, turning maneuvers, and multi-directional travel. Even within workshop environments where space is limited, these carts can navigate with agility, effortlessly completing material transfer tasks.
Unlike traditional rail-based transport systems, trackless transfer carts are unconstrained by fixed tracks. They can move flexibly across hard-surface flooring, executing forward and backward movements, turning maneuvers, and multi-directional travel. Even within workshop environments where space is limited, these carts can navigate with agility, effortlessly completing material transfer tasks.
3. Technique Parameter
In addition,We have a wide variety of hand trucks available for selection.
KPD series is a low-voltage power supply without towing cable electric transport cart; KPX series is a battery electric motorized rail transport cart; KPJ series is a cable reel powered transport cart; KPT series is a tow cable powered electric transport cart; KPC series is a safe sliding line Powered electric transport cart.
| Model | BWP-2t | BWP-5t | BWP-10t | BWP-16t | BWP-20t | BWP-25t | BWP-30t | BWP-40t | BWP-50t | BWP-63t | |
| Rated load | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | |
| Table size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | |
| Height(H) | 450 | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 750 | |
| Wheel Base | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | |
| Rail Inner Gauage | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | |
| Wheel Diameter | 270 | 300 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | |
| Running Speed | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | |
| Motor Power | 1 | 1.2 | 1.6 | 2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | |
| Transformer Power | 3 | 5 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | 20 | |
| Transformer Quatity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Running Distance | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 60 | 50 | 50 | |
| Max Wheel Load | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | |
| Reference Weight | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | |
4.Applications
5.BEFANBY Client
6.Our Company
7.FAQ
1) Q: How can I operate the transfer cart ?
A: Please don't worry, dear friend. The English user manual, parts manual will be delivered with your items together.
2) Q: How to ensure your product quality ?
A : We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary,our installation engineer will go to your factory to guide the installation.
3)Q: Whether you can offer customized transfer car?
A: Yep, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
4)Q: Whether there is professional technician assist our installation?
A :Yep. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance. So that we can arrange technicians.
