China Supplied Electrical Rail Transfer Cart With Machinery Factory
商品の詳細
| 材料 | Q235 | 色 | カスタマイズされた |
|---|---|---|---|
| 応用 | 工業分野,鋼管の処理 | 走行速度 | 0～20m/分 |
| 走行距離 | 無制限 | 保証 | 24ヶ月 |
| ポート | 清dao/Tianjin/Shanghai | 耐荷重 | 1-1000トンの重荷 |
| 操作の種類 | ハンドペンダント+リモコン | 電源 | バッテリー駆動 |
| アドバンテージ | 造船所の建物間の船舶のセクションを輸送する17年以上の経験 | オプションの電源 | ケーブルの電源、トロリー ライン、低電圧の柵、ディーゼル、等。 |
| ハイライト | China electrical rail transfer cart,battery transfer cart machinery,industrial rail transfer cart |
||
製品の説明
China Supplied Electrical Rail Transfer Cart With Machinery Factory

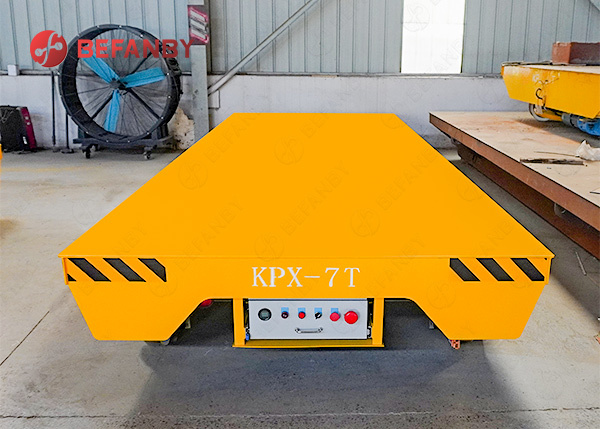

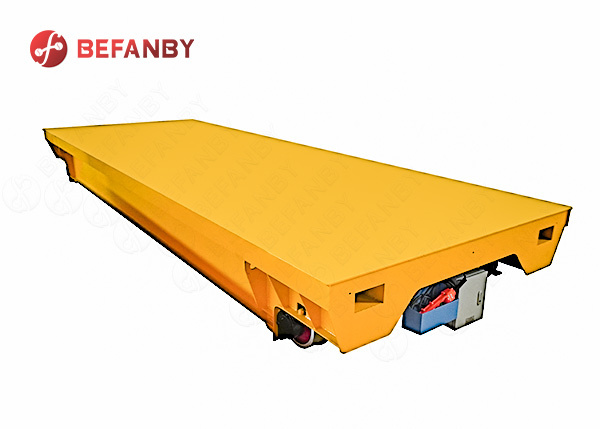

The battery-powered rail transfer cart featured here utilizes a DC motor drive system, offering smooth operation and agile starting capabilities to meet material transport requirements across a variety of settings—including workshops, warehouses, and steel mills. Powered by onboard batteries, the cart requires no external cables, making it ideally suited for long-distance and multi-station transport operations. The cart boasts a robust construction, featuring a sturdy box-beam frame structure. Its platform dimensions, load capacity, and functional configurations can all be customized to align with the client's specific operational conditions, thereby ensuring optimal adaptability for handling diverse types of materials.
battery powered transfer cart rail power supply trolley line motorized rail cart cable power supply
All can be customized as per customers’ requirement.And BEFANBY business is meeting your business need, hope our professional team can help you well with rich experience.
battery powered transfer cart rail power supply trolley line motorized rail cart cable power supply
battery powered transfer cart rail power supply trolley line motorized rail cart cable power supply
Detailed Images

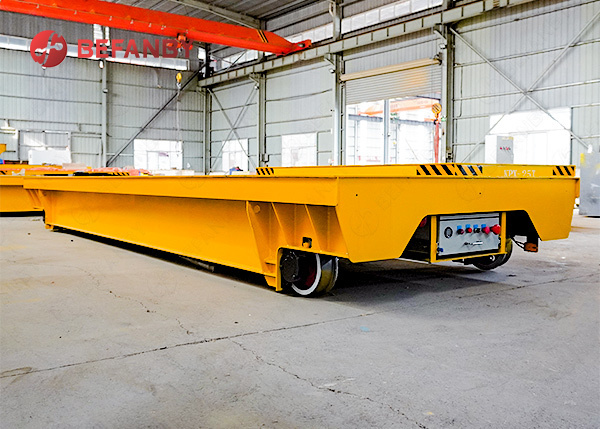

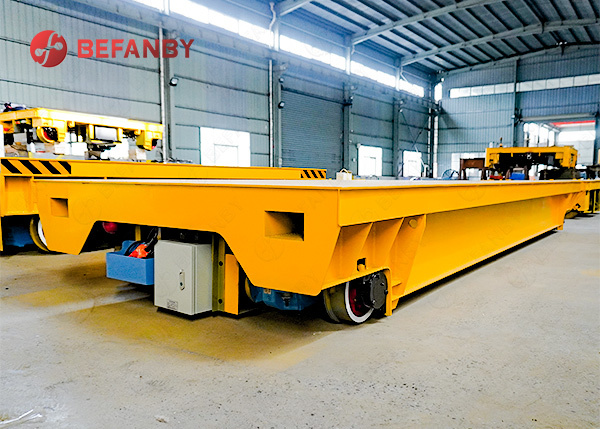

This rail transfer cart offers a host of advantages, including simple operation, convenient maintenance, and low noise levels during operation. It supports a choice of control modes—remote control, handheld pendant, or automated control—enabling precise starting and stopping as well as flexible movement. Powered by a robust DC motor, the unit maintains stable operation even under heavy loads; when paired with wear-resistant cast steel wheels—or other custom wheel options—it effectively extends the equipment's service life. Furthermore, the cart can be customized with various additional features—such as safety guardrails, hydraulic lifting mechanisms, and automatic docking systems—to provide a highly efficient and secure transport solution for modern, intelligent manufacturing facilities.
Technique Parameter
| Model | KPX-10t | KPX-16t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-63t | KPX-80t | KPX-100t | KPX-150t | |
| Rated Load | 10 | 16 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table size | Length(L) | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 500 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauage | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter | 300 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Motor Power | 2 | 2.2 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | 15 | |
| Battery Capacity | 160 | 180 | 250 | 250 | 300 | 330 | 400 | 400 | 440 | 600 | |
| Battery Voltage | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Max Wheel Load | 42.6 | 64.5 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Reference Weight | 4.2 | 5.5 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 | |
Our Company
FAQ
1) Q: How can I operate the transfer cart ?
A: Please don't worry, dear friend. The English user manual, parts manual will be delivered with your items together.
2) Q: How to ensure your product quality ?
A : We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary,our installation engineer will go to your factory to guide the installation.
3)Q: Whether you can offer customized transfer cart?
A: Yep, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
4)Q: Whether there is professional technician assist our installation?
A :Yep. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance. So that we can arrange technicians.
A: Please don't worry, dear friend. The English user manual, parts manual will be delivered with your items together.
2) Q: How to ensure your product quality ?
A : We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary,our installation engineer will go to your factory to guide the installation.
3)Q: Whether you can offer customized transfer cart?
A: Yep, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
4)Q: Whether there is professional technician assist our installation?
A :Yep. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance. So that we can arrange technicians.
