x商品の詳細
| 材料 | Q235 | 走行速度 | 0～20m/分 |
|---|---|---|---|
| 走行距離 | 顧客の要求に応じて | 保証 | 18ヶ月 |
| 耐荷重 | 1-1000T | 応用 | 工業分野,鉄鋼の処理,材料の処理機器 |
| ポート | 清dao/Tianjin/Shanghai | 色 | カスタマイズされた |
| 電源 | バッテリー電源 | 操作の種類 | pendent +リモート・コントロール手 |
| 柵および車輪 | 絶縁された材料は加えられる |
製品の説明

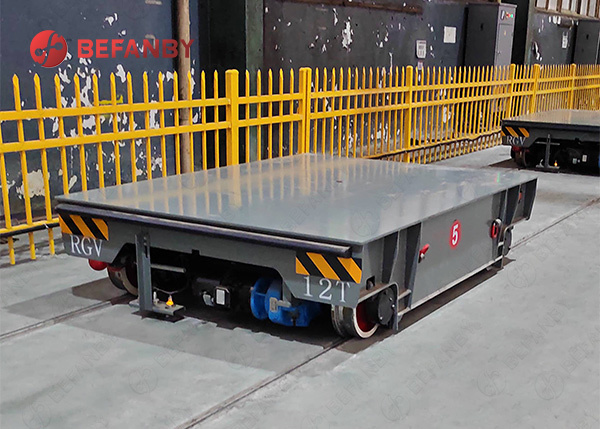

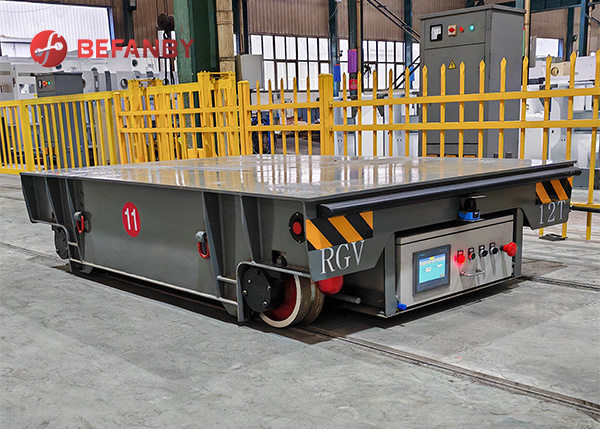

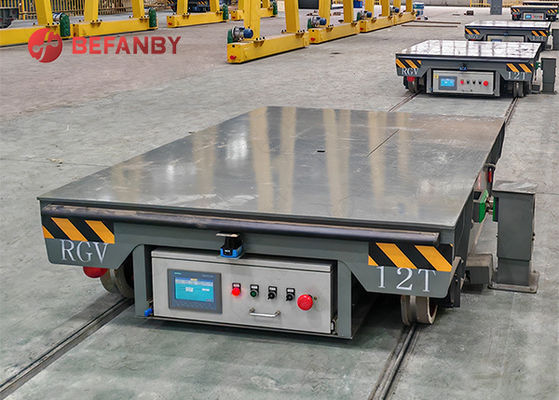

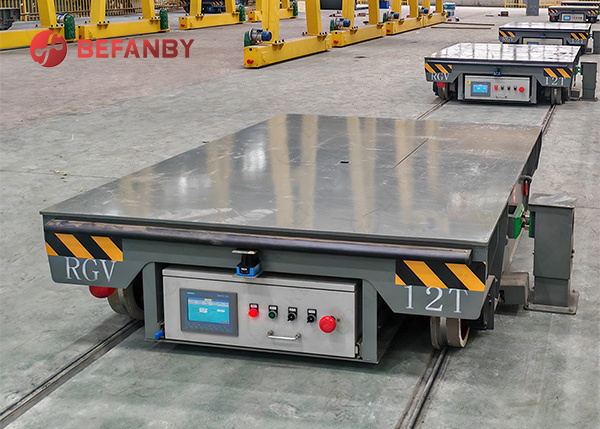

12 Ton With Intelligent Electrical Box RGV Robot Transfer Cart
1. Product Introduce
flat carts power supply system custom manufacture flat cars
|
The RGV (Rail Guide Vehicle) intelligent rail transport vehicle is suitable for both indoor and outdoor operation in factories, enabling intelligent scheduling across multiple workstations and production lines, providing enterprises with a more efficient, safer, and more flexible material handling solution. |
|
01 Intelligent Operation Control The RGV is equipped with an advanced intelligent control system, and the track route can be customized according to customer requirements. It features precise stopping and bidirectional operation. It supports multi-point production line fixed-point stopping, enabling fully automated scheduling and significantly improving production line collaboration efficiency. |
factory manufacturer flat cars custom manufacture flat carts high speed rail factory manufacturer flat cars custom manufacture flat carts high speed rail
|
Please contact us if you's like to learn more details and get the quotation. BEFANBY have over 16 years' experience in the material handling fields. |
2.Appliacations
flat carts power supply system custom manufacture flat cars
3. Befanby Material Handling Equipment Introduce
factory manufacturer flat cars custom manufacture flat carts high speed rail
The transfer carts factory manufacturer material handling equipment used in warehouses used to carry heavy objects in the workshop. Generally speaking, the driving behavior on the track is limited. In order to solve these problems, Xinxiang Hundred Percent Electrical And Mechanical Co., Ltd. has developed non-standard vehicles such as turntables, turning vehicles, and shuttle vehicles to assist in the use. Industrial rail flat cars are powered by KPX battery, KPD low-voltage rail power supply, KPJ cable reel power supply and KPC trolley line power supply; the track laying requirements of rail flat cars need to be appropriately based on power supply and factory conditions, such as low voltage Rail power supply requires insulation treatment; high temperature resistance treatment is required under high temperature conditions. In addition, the customization of industrial rail cars needs to be customized according to the specific needs of users, and the size of the design needs to be calculated by the technicians for the load.
Welcome to inquiry us if you'd like to learn more
4. Technique Parameter
| Model | KPD-2t | KPD-5t | KPD-10t | KPD-16t | KPD-20t | KPD-25t | KPD-30t | KPD-40t | KPD-50t | KPD-63t | |
| Rated load | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | |
| Table size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | |
| Height(H) | 450 | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 750 | |
| Wheel Base | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | |
| Rail Inner Gauage | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | |
| Wheel Diameter | 270 | 300 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | |
| Running Speed | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | |
| Motor Power | 1 | 1.2 | 1.6 | 2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | |
| Transformer Power | 3 | 5 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | 20 | |
| Transformer Quatity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Running Distance | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 60 | 50 | 50 | |
| Max Wheel Load | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | |
| Reference Weight | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | |
