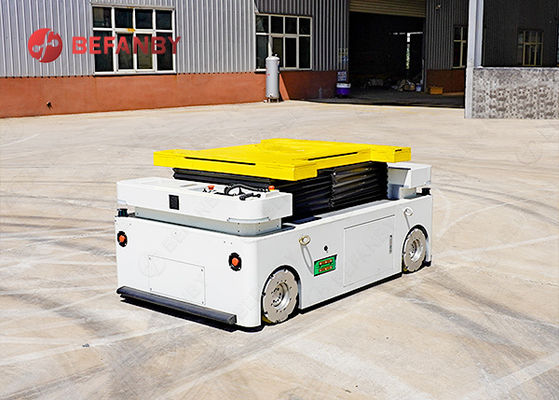

1.5 Ton Intelligent Trackless Mecanum Wheelwith Lift AGV Robot
試供品およびクーポンのための私に連絡しなさい。
whatsapp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 色 | カスタマイズ | 保証 | 24か月 |
|---|---|---|---|
| 負荷容量 | カスタマイズ | 電源 | バッテリー動作 |
| ポート | 清dao/Tianjin/Shanghai | 応用 | 空中作業、工場、ワークショップ、建設現場 |
| 材料 | 鋼鉄 |
製品の説明

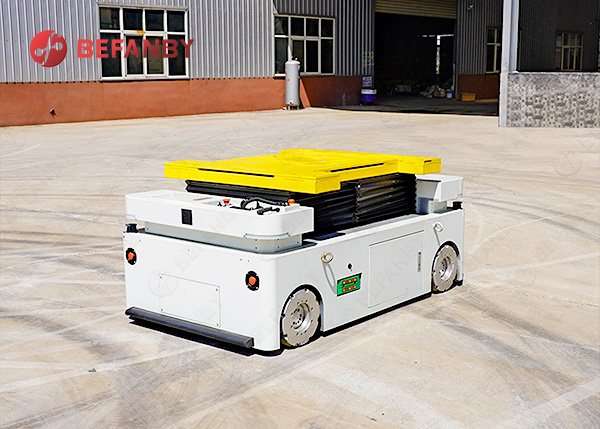

1.5 Ton Intelligent Trackless Mecanum Wheelwith Lift AGV Robot
Product Description
The AGV (Automated Guided Vehicle) is a type of intelligent transport equipment designed for indoor and outdoor factories, integrating automated control and high-precision positioning. Its Mecanum wheel drive design enables full range of motion (forward, reverse, lateral movement, diagonal movement, and on-the-spot rotation), significantly improving operational flexibility and docking accuracy in confined spaces.
Structure and Drive
The vehicle is constructed from a welded, high-strength steel structure, resulting in a compact appearance and strong load-bearing capacity. The load-bearing capacity can be customized according to actual needs. The Mecanum wheels consist of multiple tilting rollers, enabling flexible operation in any direction. The drive system utilizes high-precision servo motors coupled with encoder control, ensuring smooth movement and minimal positioning error.
Navigation method
The vehicle's built-in intelligent AGV control system supports multiple navigation methods, including laser, QR code, and vision, allowing for flexible selection based on production line layout. The system supports automatic path planning, obstacle avoidance, task scheduling, and remote monitoring, enabling seamless integration with MES systems.
Product Parameter
| Model | KPX-10t | KPX-16t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-63t | KPX-80t | KPX-100t | KPX-150t | |
| Rated Load | 10 | 16 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table size | Length(L) | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 500 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauage | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter | 300 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Motor Power | 2 | 2.2 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | 15 | |
| Battery Capacity | 160 | 180 | 250 | 250 | 300 | 330 | 400 | 400 | 440 | 600 | |
| Battery Voltage | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Max Wheel Load | 42.6 | 64.5 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Reference Weight | 4.2 | 5.5 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 | |
Company Profile
Product Feature
Heavy-Duty Capacity: Maximum load capacity of 30 tons, meeting the needs of efficient transport of large and heavy materials.
Intelligent Navigation: Supports multiple navigation methods, including laser, magnetic stripe/pin, and QR code, for precise and flexible operation.
Safety Protection: Cushioned protection is installed on all four sides of the vehicle, along with an emergency stop button and sensor protection system.
Flexible Operation: No tracks are required, allowing for free straight and turning maneuvers, adapting to complex routes.
Energy-Saving and Environmentally Friendly: Battery-powered, low-noise, zero-emission, suitable for a variety of indoor and outdoor applications.
Customizable: Vehicle dimensions, platform structure, and functional modules can be customized to meet customer needs.
