Heavy Load 30 Ton Remote Control Trackless Automatic Guided Vehicle
試供品およびクーポンのための私に連絡しなさい。
whatsapp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 色 | カスタマイズ | 保証 | 24か月 |
|---|---|---|---|
| 負荷容量 | カスタマイズ | 電源 | バッテリー動作 |
| ポート | 清dao/Tianjin/Shanghai | 応用 | 空中作業、工場、ワークショップ、建設現場 |
| 材料 | 鋼鉄 |
製品の説明

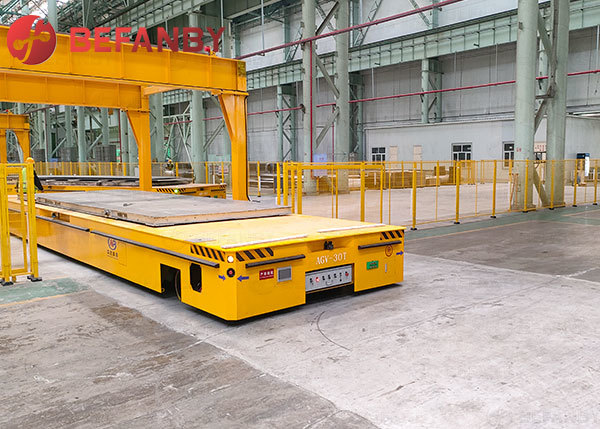

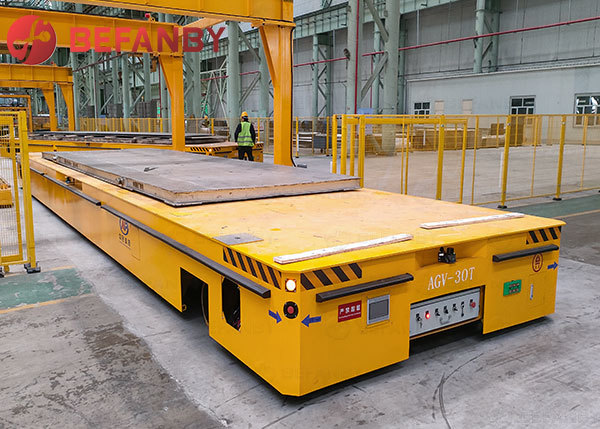

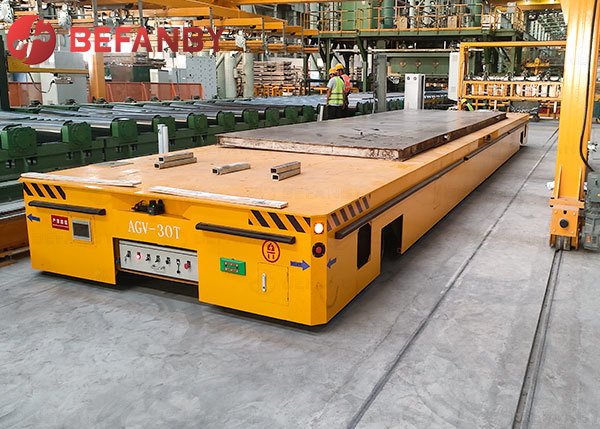

Heavy Load 30 Ton Remote Control Trackless Automatic Guided Vehicle
Product Description
The AGV intelligent trackless transfer cart is an intelligent transport device designed specifically for semi-automated factories. With a single vehicle capacity of up to 30 tons, it can handle the transportation needs of steel, aluminum ingots, large equipment, and heavy objects on production lines. The transfer utilizes various intelligent navigation systems (customizable based on actual working conditions) for route planning and automated operation. Without the need for track, it offers flexible operation and is suitable for a variety of complex factories and warehouses.
Safety protection and buffering devices are installed on all sides of the vehicle to effectively reduce collision impact in emergencies, ensuring the safety of equipment and personnel. It also features an emergency stop system and an automatic stop function for personnel, providing comprehensive safety protection
Navigation method
Product Parameter
| Model | KPX-10t | KPX-16t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-63t | KPX-80t | KPX-100t | KPX-150t | |
| Rated Load | 10 | 16 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table size | Length(L) | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 500 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauage | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter | 300 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Motor Power | 2 | 2.2 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | 15 | |
| Battery Capacity | 160 | 180 | 250 | 250 | 300 | 330 | 400 | 400 | 440 | 600 | |
| Battery Voltage | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Max Wheel Load | 42.6 | 64.5 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Reference Weight | 4.2 | 5.5 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 | |
Company Profile
Product Feature
Heavy-Duty Capacity: Maximum load capacity of 30 tons, meeting the needs of efficient transport of large and heavy materials.
Intelligent Navigation: Supports multiple navigation methods, including laser, magnetic stripe/pin, and QR code, for precise and flexible operation.
Safety Protection: Cushioned protection is installed on all four sides of the vehicle, along with an emergency stop button and sensor protection system.
Flexible Operation: No tracks are required, allowing for free straight and turning maneuvers, adapting to complex routes.
Energy-Saving and Environmentally Friendly: Battery-powered, low-noise, zero-emission, suitable for a variety of indoor and outdoor applications.
Customizable: Vehicle dimensions, platform structure, and functional modules can be customized to meet customer needs.
