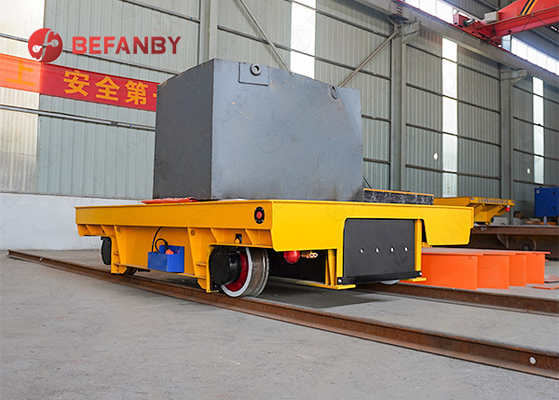

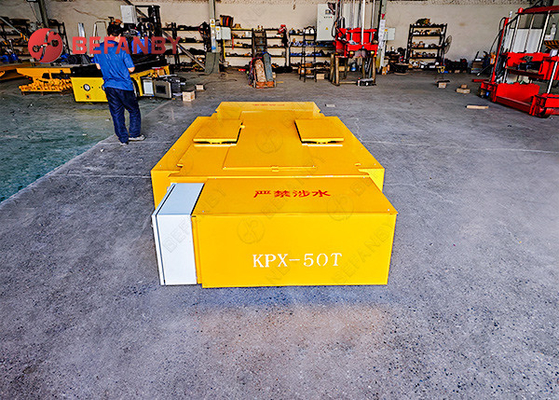

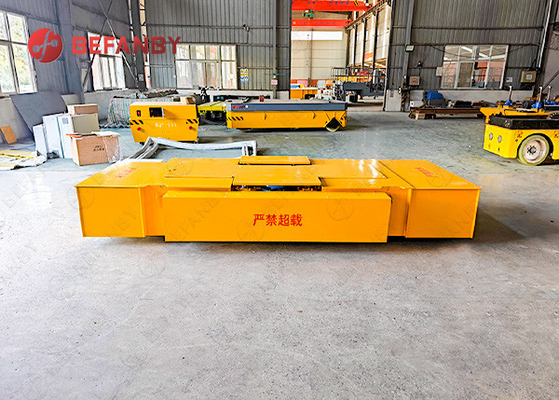

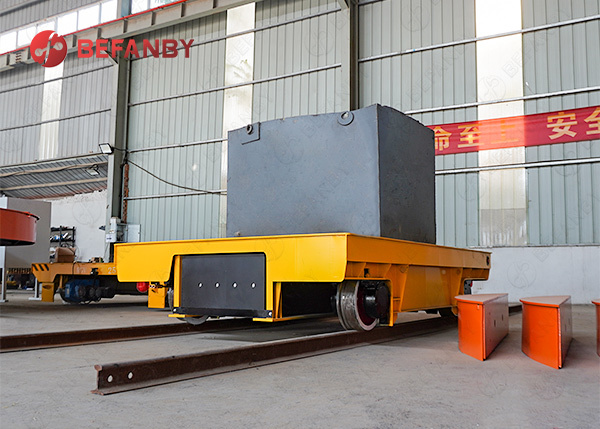

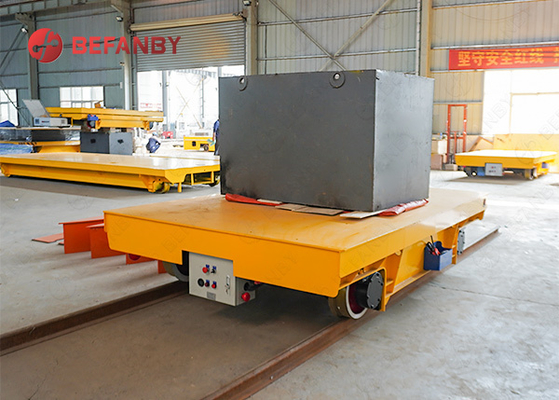

10 Ton Long Lifetime Steel Welding Frame Transfer Vehicle With Battery
| Place of Origin | Henan,China |
|---|---|
| ブランド名 | BEFANBY |
| 証明 | CE,SGS,ISO9001 |
| Model Number | lift platform |
| Minimum Order Quantity | 1 set/sets |
| 価格 | 交渉可能 |
| Packaging Details | The movable lifting platform will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 20-30 days as usual delivery |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 1500 set/sets, per year |
試供品およびクーポンのための私に連絡しなさい。
whatsapp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| Color | Customized | Warranty | 24 months |
|---|---|---|---|
| Load capacity | Customized | Power supply | Battery Operated |
| Port | Qingdao/Tianjin/Shanghai | Application | factory,workshop,construction site |
| Materials | Steel |
製品の説明
10 Ton Long Lifetime Steel Welding Frame Transfer Vehicle With Battery
Product Description
Based on customer requirements, we designed and delivered two 15-ton battery-powered rail transporters with the following configuration:
Power System: Equipped with a high-capacity industrial battery pack, the vehicle can operate continuously for over 8 hours on a single charge.
Construction: Utilizes a thickened welded steel structure with a flat surface. Customizable load capacities and dimensions are available.
Control: Dual operation modes, including wireless remote control and joystick control, provide flexibility and convenience.
Safety Design: The vehicle is equipped with an audible and visual alarm, an emergency stop button, automatic limit switches, and automatic stop on human presence.
Product Parameter
| Model | KPT-2T | KPT-5T | KPT-10T | KPT-16T | KPT-20T | KPT-25T | KPT-30T | KPT-40T | KPT-50T | KPT-63T | KPT-80T | KPT-100T | KPT-150 | |
| Rated load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table Size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Heigth(H) | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 700 | 800 | 900 | 1000 | 1200 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rai Ilnner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Dia.(mm) | Φ270 | Φ300 | Φ300 | Φ350 | Φ350 | Φ400 | Φ400 | Φ500 | Φ500 | Φ600 | Φ600 | Φ600 | Φ600 | |
| Wheel Quantity(pcs) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed(mm) | 25 | 25 | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Motor Power(kw) | 0.8 | 1.5 | 1.5 | 2.2 | 2.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | |
| Running distance(m) | 25 | 25 | 25 | 25 | 30 | 30 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |
| Max Wheel load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Reference Wight(t) | 2.5 | 3.5 | 4 | 5.2 | 5.6 | 6.2 | 6.5 | 7.3 | 7.8 | 10.5 | 12.3 | 14.1 | 26.2 | |
| Recommend Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 |
QU100 |
|
Our Company
Product Feature
- Smooth Operation: It operates along a fixed rails, eliminating path deviation and ensuring more stable transport. It can also operate on curved and S-shaped rails.
- High Load Capacity: It can be designed with load capacities ranging from 1 to 100 tons, or even higher, based on your needs.
- Automated Control: It supports wireless remote control, PLC control, and remote operation.
- Customization: The tabletop can be equipped with hydraulic lifting devices, rotating platforms, protective devices, and more to meet individual needs.
- Energy-Friendly: It is electrically powered, complying with green development requirements.
Applications
Steel Industry: Transporting heavy, high-temperature materials such as steel coils, profiles, and ladles.
Mechanical Manufacturing: Transporting workpieces or molds between workshops.
Automotive Industry: Transporting large parts and assembling components between production lines.
Warehousing and Logistics: Connecting to intelligent logistics equipment such as automated warehouses and sorting systems.
